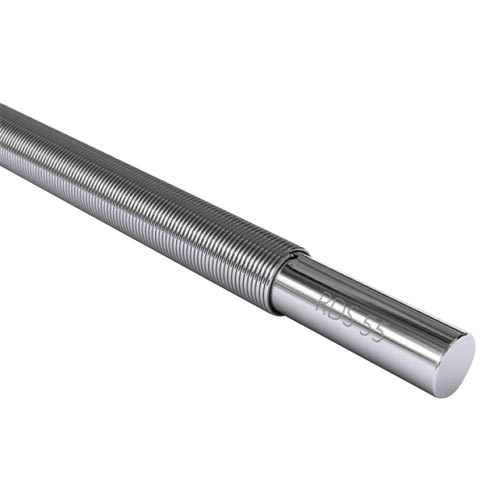

Ink Bar
Product Code: UT-IB
Ink Bars are produced by winding precision drawn stainless steel wire onto a stainless steel rod resulting in a pattern of identically shaped grooves. These grooves precisely control the wet film thickness.
Features
油墨刮棒/塗佈棒/線棒
| 編號 | 捲線徑 | 濕膜厚度 | 編號 | 捲線徑 | 濕膜厚度 |
| 2 | 0.05mm | 4.57um | 28 | 0.71mm | 64.01um |
| 3 | 0.08mm | 6.86um | 30 | 0.76mm | 68.58um |
| 4 | 0.10mm | 9.14um | 32 | 0.81mm | 73.15um |
| 5 | 0.13mm | 11.43um | 34 | 0.86mm | 77.72um |
| 6 | 0.15mm | 13.72um | 36 | 0.91mm | 82.30um |
| 7 | 0.18mm | 16.00um | 38 | 0.97mm | 86.87um |
| 8 | 0.20mm | 18.29um | 40 | 1.02mm | 91.44um |
| 9 | 0.23mm | 20.57um | 42 | 1.07mm | 96.01um |
| 10 | 0.25mm | 22.86um | 44 | 1.12mm | 100.58um |
| 12 | 0.30mm | 27.43um | 46 | 1.17mm | 105.16um |
| 14 | 0.36mm | 32.00um | 48 | 1.22mm | 109.73um |
| 16 | 0.41mm | 36.58um | 50 | 1.27mm | 114.30um |
| 18 | 0.46mm | 41.15um | 55 | 1.40mm | 125.73um |
| 20 | 0.51mm | 45.72um | 60 | 1.52mm | 137.16um |
| 22 | 0.56mm | 50.29um | 65 | 1.65mm | 148.59um |
| 24 | 0.61mm | 54.86um | 70 | 1.78mm | 160.02um |
| 26 | 0.66mm | 59.44um | 75 | 1.91mm | 171.45um |
